Ruud Furnace Flame Sensor Location and Maintenance Guide

Knowing the exact location of the flame sensor in a Ruud furnace is essential for troubleshooting and routine maintenance. The flame sensor plays a crucial role in ensuring your furnace operates safely by detecting the presence of a flame during ignition. Proper identification and care of the flame sensor can prevent furnace shutdowns and improve overall heating efficiency.

Component	Location	Function
Flame Sensor	Near the burner assembly inside the furnace	Detects flame presence to confirm safe ignition
Burner Assembly	Base of the combustion chamber	Ignites fuel to produce heat
Control Board	Inside furnace control compartment	Manages furnace startup and safety checks

Where to Find the Flame Sensor in a Ruud Furnace

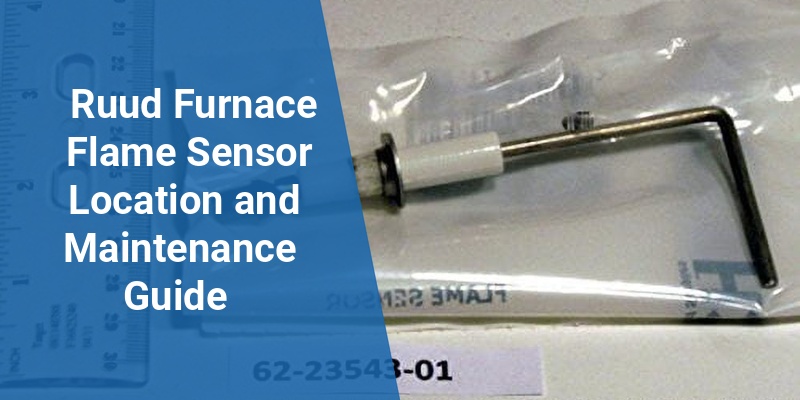

The flame sensor in Ruud furnaces is typically positioned near the burner assembly, inside the combustion chamber. Its design allows it to monitor the presence of a flame whenever the furnace ignites. This sensor looks like a thin, metallic rod mounted in front of the burners.

In most Ruud models, the sensor is attached on a bracket or directly fixed to the burner housing, angled to detect the flame without interfering with airflow or burner operation. Locating it requires removing the furnace access panel, usually secured by screws.

Role of the Flame Sensor in Furnace Operation

The flame sensor is a safety device that ensures the furnace only operates when a flame is present. When the furnace igniter lights the burners, the sensor detects the flame’s heat and sends a signal to the control board. If no flame is detected, it stops the gas valve to prevent gas buildup, which could be dangerous.

Without a properly functioning flame sensor, the furnace can shut down repeatedly or fail to start, leading to heating interruptions and potential safety hazards.

How to Identify and Access the Flame Sensor on Your Ruud Furnace

To locate the flame sensor on a Ruud furnace, take the following steps:

• Turn off power and gas supply for safety before opening the furnace.
• Remove the furnace’s front panel to expose the burner compartment.
• Look for a rod, about 4-6 inches long, protruding toward the burner flame.
• The sensor is often held by a single screw and connected to a wire leading to the control board.

This setup is consistent across various Ruud furnace models, but always consult the specific model’s manual for exact details.

Common Issues Related to Flame Sensors in Ruud Furnaces

Flame sensors can develop problems over time, primarily due to dirt, corrosion, or improper positioning. Common symptoms include:

• Furnace ignites but shuts off after a few seconds
• Frequent error codes related to flame detection
• Furnace fails to ignite despite power and gas supply being on
• Visible discoloration or buildup on the sensor rod

Cleaning or repositioning the flame sensor often resolves these issues.

How to Clean and Maintain Your Ruud Furnace Flame Sensor

Regular maintenance of the flame sensor improves reliability and efficiency:

1. Turn off all power and gas before performing any maintenance.
2. Remove the sensor by unscrewing it carefully from the burner assembly.
3. Use fine-grit sandpaper or a soft cloth to gently clean any soot, dirt, or corrosion from the sensor rod.
4. Do not use abrasive tools or harsh chemicals that can damage the sensor.
5. Reinstall the sensor in its original position and secure the wire connection.
6. Restore power and test furnace operation.

Routine cleaning every heating season can prevent sensor-related furnace failures.

When to Replace the Flame Sensor in a Ruud Furnace

If cleaning does not resolve ignition or shutdown problems, or if the sensor is visibly damaged, replacement is recommended. Signs you need a new flame sensor include:

• Persistent ignition failures after cleaning
• Physical damage such as bends, cracks, or severe corrosion
• Unresponsive sensor readings detected during professional diagnostics

New flame sensors for Ruud furnaces are generally affordable and easy to install. Always use OEM parts or equivalent quality replacements for reliable performance.

Additional Tips for Maintaining Furnace Safety and Efficiency

Besides caring for the flame sensor, consider these best practices to maintain your Ruud furnace:

• Schedule annual professional inspections and tune-ups
• Keep the furnace and surrounding area clean and unobstructed
• Check and replace air filters regularly to promote airflow
• Ensure proper ventilation and clear flue lines
• Install a carbon monoxide detector near the furnace

These steps support safe operation and extend the life of your Ruud furnace.
