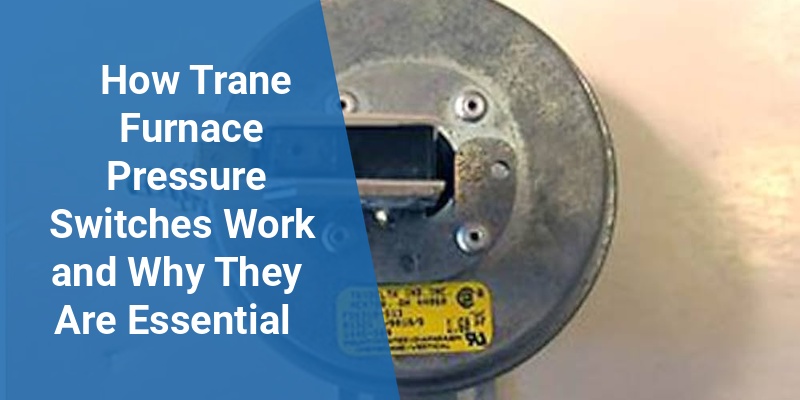

How Trane Furnace Pressure Switches Work and Why They Are Essential

The Trane furnace pressure switch is a critical safety component that ensures your heating system operates efficiently and safely. It monitors the furnace’s venting system, confirming proper airflow and combustion pressures before allowing the furnace to ignite. Malfunctions in the pressure switch can cause your furnace to shut down, leading to heating issues or safety risks. Understanding how the Trane furnace pressure switch operates, common problems, and maintenance tips can help homeowners keep their heating system in optimal condition.

Feature	Description
Component	Pressure Switch in Trane Furnaces
Function	Monitors vent system pressure to verify safe furnace operation
Common Issues	Clogged vents, faulty switch, blocked air intake
Impact	Prevents furnace ignition if unsafe pressure detected
Solutions	Cleaning, inspection, switch replacement

What Is a Trane Furnace Pressure Switch?

The pressure switch in a Trane furnace is an electrical safety device designed to detect the presence and adequacy of proper venting pressure inside the furnace. It ensures that exhaust gases are vented correctly and that the combustion process is safe to proceed. The switch works by sensing the difference in air pressure caused by the draft inducer motor pushing exhaust gases through the vent pipe. When the pressure meets the required threshold, it closes a contact allowing the furnace to ignite.

How the Trane Furnace Pressure Switch Functions

The pressure switch operates in conjunction with the furnace’s draft inducer motor. When the furnace calls for heat:

• The draft inducer motor starts, creating a controlled airflow that pushes combustion gases out of the vent.
• The pressure switch senses this airflow through a small tube connected to the inducer.
• If the air pressure within the vent system reaches the preset level, the switch closes its electrical contacts, signaling the control board to proceed with ignition.
• If the pressure is insufficient or negative (due to blockage or failure), the switch remains open, preventing the furnace from igniting to avoid dangerous conditions.

This mechanism prevents the potential buildup of dangerous combustion gases like carbon monoxide inside the home.

Common Causes of Trane Furnace Pressure Switch Malfunctions

Several factors can cause the pressure switch to fail or trigger furnace shutdowns unexpectedly:

• Blocked or dirty vent pipes: Debris, nests, or ice can obstruct airflow and prevent proper pressure buildup.
• Clogged air intake: The air intake pipe must be clear for the inducer motor to generate sufficient airflow.
• Damaged or cracked pressure switch tubing: The small tubes connecting the switch to the inducer can be brittle and crack over time.
• Faulty pressure switch: The switch itself can fail due to wear or electrical issues.
• Draft inducer motor problems: If the inducer motor doesn’t operate correctly, it can’t create pressure, leading to switch failure.

Regular maintenance and inspection can help identify and mitigate many of these issues before they cause furnace downtime.

How to Diagnose a Trane Furnace Pressure Switch Problem

Diagnosing pressure switch issues typically requires professional tools and knowledge. However, some common signs indicate pressure switch problems:

• The furnace cycles on and off rapidly or fails to ignite.
• Visible error codes on the furnace control board related to pressure switch malfunction (consult your model’s manual).
• Unusual noises from the furnace during startup.
• Inspection of the vent pipes reveals blockages or damage.

Technicians often test the pressure switch by manually applying pressure or using a multimeter to check continuity. The associated vent tubing and inducer motor are also inspected.

Maintenance Tips to Keep the Trane Furnace Pressure Switch Functioning Properly

Maintaining the pressure switch and related components ensures long-term reliable furnace operation:

• Schedule annual furnace inspections: Professionals can clean vent pipes, test the pressure switch, and examine the inducer motor.
• Keep vents and air intakes clear: Remove debris, snow, or leaves blocking outdoor vents.
• Inspect pressure switch tubing: Look for cracks, hardening, or blockages and replace if necessary.
• Replace old or malfunctioning pressure switches promptly: This avoids damage to other furnace parts.
• Ensure the draft inducer motor is functioning correctly: Malfunctions here directly affect pressure switch operation.

When to Replace a Trane Furnace Pressure Switch

The pressure switch is relatively durable but will ultimately need replacement if it shows ongoing problems or physical damage. Signs that replacement is necessary include:

• Persistent furnace shutdowns related to pressure sensing.
• No continuity on electrical testing despite proper vent conditions.
• Visible damage or corrosion on the switch or tubing.
• Repeated troubleshooting not improving furnace operation.

Replacement parts should be OEM-approved for Trane furnaces to ensure compatibility and safety.

Impact of a Faulty Pressure Switch on Furnace Efficiency and Safety

A malfunctioning pressure switch can cause your furnace to:

• Fail to start or cycle ON/OFF frequently, reducing heat output and comfort.
• Consume more energy due to inefficient operation cycles.
• Risk unsafe combustion or carbon monoxide buildup if it fails to detect vent issues.
• Trigger costly repairs if ignored over time.

Ensuring the pressure switch works properly is essential for maintaining furnace safety, efficiency, and longevity.

Frequently Asked Questions About Trane Furnace Pressure Switches

Can a homeowner replace a Trane furnace pressure switch?

While technically possible, replacing the pressure switch usually requires knowledge of furnace wiring and safety protocols. It is recommended to hire a certified HVAC technician to avoid risking improper installation or safety hazards.

How much does a Trane furnace pressure switch replacement cost?

Costs vary by location and model, but replacement including labor typically ranges between $150 and $300.

How often should the pressure switch be checked?

Annual inspection during furnace servicing is advisable to identify early wear and prevent failures.

What causes the pressure switch to keep opening?

Common causes include vent blockages, blocked air intake, faulty tubing, or inducer motor failure preventing the pressure from reaching the necessary threshold.
