How Many Amps Does a Furnace Use: A Comprehensive Guide for Homeowners

Understanding how many amps a furnace uses is essential for homeowners, electricians, and HVAC professionals when planning electrical requirements and managing energy efficiency. Furnaces come in various types and sizes, each with different power demands. This article explores the typical amperage draw of different furnace models, explains factors influencing electrical consumption, and provides practical advice for safely operating and installing furnaces in American homes.

Furnace Type	Typical Amperage Range	Voltage	Remarks
Electric Furnace	30 to 60 amps	240 volts	Higher amperage due to heating elements
Gas Furnace (Induced Draft)	3 to 10 amps	120 volts	Lower amperage, mainly for blower and igniter
Gas Furnace (Condensing)	5 to 15 amps	120 volts	Energy-efficient, uses fan and control boards
Blower Motor	1 to 6 amps	120 volts	Varies with motor type and speed

Understanding Furnace Electrical Consumption

Furnaces, whether electric or gas-powered, rely on electricity primarily to operate blower motors, control systems, and ignition components. The measure of electrical current they consume is in amperes or amps, which indicates how much electrical power flows through the system. Understanding the amp draw is critical for ensuring proper circuit sizing and preventing electrical hazards.

The amperage a furnace draws depends on its type, size, efficiency rating, and additional features like variable-speed blower motors or electronic thermostats. Electric furnaces generally demand more amps because they use electric heating elements responsible for generating warmth.

Typical Amperage Usage for Electric Furnaces

Electric furnaces operate solely on electricity to generate heat, which means they typically require higher amperage compared to gas furnaces. Most electric furnaces use heating elements that resist electrical current, converting it directly into heat.

Common electric furnaces draw between 30 and 60 amps at 240 volts. This range varies depending on the furnace’s heating capacity, usually measured in kilowatts (kW). For example:

A 10 kW electric furnace typically draws about 42 amps (calculated by dividing wattage by voltage: 10,000W / 240V = 41.7 amps).
Larger units such as a 15 kW furnace may draw up to 62.5 amps.

Because of this high power demand, electric furnaces generally require dedicated 240-volt circuits equipped with appropriate breakers to handle the load safely.

Amperage Usage in Gas Furnaces

Gas furnaces utilize natural gas or propane to produce heat but still require electricity to power components such as the blower motor, ignition system, and control board. Therefore, their electrical consumption is much lower than that of electric furnaces.

Call 888-906-9139 for Free Local HVAC Quotes – No Obligation, Just Savings!

Most standard gas furnaces draw between 3 and 10 amps at 120 volts. Factors influencing this include blower motor size, fan speed, and electronic control complexity. More advanced, energy-efficient condensing furnaces may draw a bit more, typically in the 5 to 15 amps range.

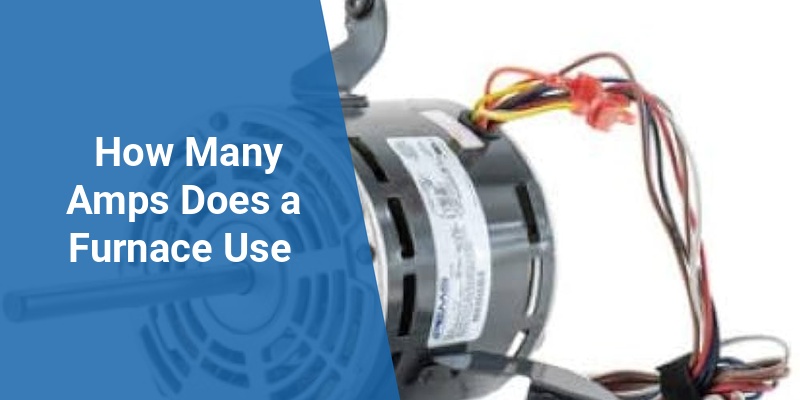

Blower Motor Amperage

The blower motor is one of the highest electrical consumers in a gas furnace. Its amperage depends on motor type:

PSC (Permanent Split Capacitor) motors: These older models can use between 3 to 6 amps.
ECM (Electronically Commutated Motors): These energy-efficient motors typically use 1 to 3 amps but with variable speed control.

Modern furnaces increasingly use ECM fans for better efficiency and lower electricity consumption.

Factors Affecting Furnace Amp Draw

Several factors can influence the amps a furnace draws, including:

Furnace Size and BTU Rating: Larger furnaces with higher BTU (British Thermal Unit) ratings generally consume more electricity for components like blowers.
Type of Motor: Variable-speed ECM motors draw less continuous current compared to traditional single-speed PSC motors.
Startup Amps vs. Running Amps: Motors can momentarily draw 2 to 3 times their running amps during startup.
Additional Features: Features like electronic ignition, circuit boards, and humidifiers can add to the amperage draw.
Electrical Supply Voltage: Variations in supply voltage can affect current draw but typically remain within design specifications.

How to Safely Determine Furnace Electrical Requirements

Correctly sizing a circuit to accommodate a furnace’s electrical needs avoids frequent breaker trips and electrical hazards. Steps to determine the correct amperage include:

Consult the Furnace Specification Sheet: The manufacturer’s label or manual details the required voltage and full-load amps (FLA).
Calculate the Circuit Size: For electric furnaces, multiply wattage by 125% as per National Electrical Code (NEC) guidelines to account for safety margins.
Consider Startup Current: Electric motors draw higher startup amps; ensure circuit breakers can handle these surges.
Hire a Licensed Electrician: Professional installation ensures compliance with local codes and safe operation.

Energy Efficiency and Electrical Consumption

Newer furnace models, especially those with variable-speed blowers and advanced controls, are designed to optimize energy use. These features reduce electricity consumption and associated amp draw while maintaining comfort levels.

For example, variable-speed ECM motors adjust their amperage based on heating needs, which lowers overall energy consumption compared to older single-speed blowers. Additionally, condensing gas furnaces can reduce electrical consumption while enhancing heating efficiency.
