Installing a furnace filter correctly is crucial for maintaining efficient heating system performance and indoor air quality. One of the most common questions homeowners ask is which way the air flows through a furnace filter. Understanding the airflow direction ensures the filter traps dust and debris effectively, protecting the furnace components and promoting cleaner air. This article explains how to identify the correct airflow direction for furnace filters and why proper installation matters for your HVAC system.
| Aspect | Key Points |
|---|---|
| Airflow Direction | From return duct into furnace blower, filter facing with airflow arrow pointing towards furnace |
| Identifying Arrows | Filters usually have arrows on the frame indicating airflow direction |
| Effect of Incorrect Installation | Reduces filtration efficiency, can damage furnace parts, reduces system lifespan |
| Filter Placement | Installed in return air duct or furnace slot before the blower |
| Signs to Check | Dust buildup, furnace inefficiency indicate potential filter issues |
Understanding Furnace Airflow and Filter Placement
The airflow in a forced air heating system moves from the air return ducts into the furnace and then out through the supply vents. Furnace filters are installed in the return air pathway before the air reaches the blower fan. This setup ensures that air is cleaned of dust, allergens, and debris before being heated and distributed throughout the home.
The critical factor is that air flows from the return side, through the filter, and then into the furnace blower. Recognizing this flow pattern helps determine the correct orientation for the filter during installation.
How to Identify the Correct Airflow Direction on Furnace Filters

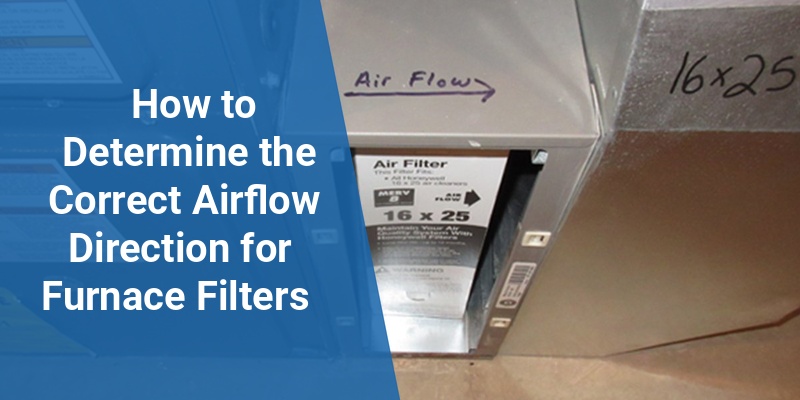

Most furnace filters come with a clearly marked arrow on the frame that shows the proper direction for airflow. This arrow should point towards the furnace or the blower, indicating where the filtered air flows next.
- Locate the arrow printed on the filter border.
- Point the arrow toward the furnace blower, meaning the air flows through the filter from the side opposite the blower to the blower side.
- If the filter lacks an arrow, consider airflow: the side that faces the return air duct is where air enters.
Always install the filter so that the arrow reflects the actual air direction to ensure efficient filtration and system protection.
Why Correct Filter Orientation Is Important
Installing furnace filters in the wrong direction can seriously impact system performance. Filters are designed with specific structures that optimize particle capture based on airflow direction, including a denser material on one side to trap contaminants.
- Reduced Efficiency: Reversing the filter reduces dust-trapping efficiency, allowing contaminants to enter the furnace.
- Furnace Damage: Dust buildup on blower motors and heat exchangers can reduce lifespan and cause mechanical issues.
- Increased Energy Use: Improper filter installation can restrict airflow, forcing the furnace to work harder and raising energy bills.
Correct installation maximizes filter effectiveness and extends HVAC system life.
Call 888-906-9139 for Free Local HVAC Quotes – No Obligation, Just Savings!
Where to Install the Furnace Filter
Filters are primarily installed in two common areas within a heating system:
- Return Air Duct: This is the ductwork leading back to the furnace. Filters here clean the air before it reaches the blower.
- Furnace Slot or Filter Rack: Many furnaces have dedicated slots or racks for filters, usually located near the blower intake.
Regardless of location, the filter’s airflow arrow must point in the direction of the furnace blower to ensure proper airflow and filtration.
Signs Your Furnace Filter Might Be Installed Incorrectly
Homeowners can often observe signs that indicate filter installation problems or clogged filters:
- Increased Dust: Visible dust buildup around vents or in rooms.
- Uneven Heating: Rooms feel cooler due to restricted airflow.
- Higher Utility Bills: Furnace runs longer to heat the space.
- Loud Furnace Operation: Strange noises from the blower due to strain.
If these symptoms occur, inspect the filter’s orientation and condition to improve performance.
Additional Tips for Furnace Filter Maintenance
Ensuring correct airflow direction is only part of effective filter maintenance. Keep in mind the following:
- Check filters monthly during heavy use seasons.
- Replace disposable filters every 1-3 months depending on HVAC usage and household conditions.
- Use filters rated to MERV 8 or higher for better air quality.
- Clean reusable filters according to manufacturer instructions.
Regular maintenance combined with correct airflow alignment keeps your furnace running smoothly and your air clean.
