High Limit Switch on a Furnace: Purpose, Function, and Troubleshooting

The high limit switch is a critical safety component in a furnace designed to prevent overheating, ensuring efficient operation and protecting your home from potential fire hazards. Understanding how this switch works, how to identify issues, and troubleshooting common problems can save homeowners from costly repairs and maintain comfort year-round.

Term	Description
High Limit Switch	A thermal safety device that shuts off the furnace’s burner if the furnace overheats.
Furnace Overheating	Caused by airflow issues or malfunctioning parts; detected by the high limit switch.
Common Issues	Frequent cycling, furnace not igniting, or no heat due to switch activation.
Resetting	Some switches reset automatically; others need manual resetting or replacement.

What Is a High Limit Switch on a Furnace?

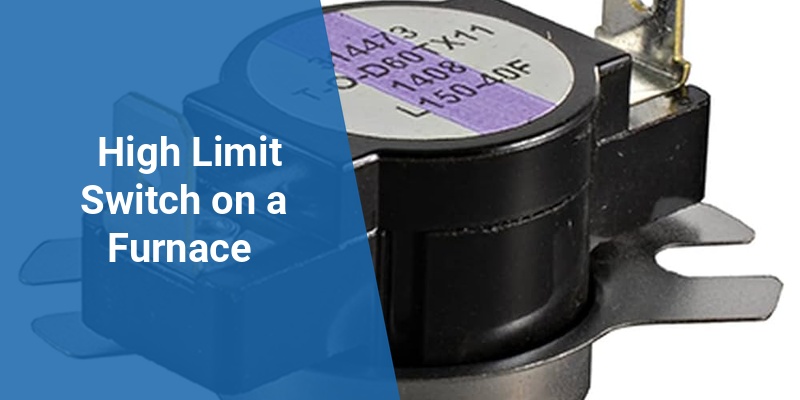

The high limit switch is a safety device installed inside a furnace’s heat exchanger or air handler. Its primary function is to monitor the temperature of the furnace and prevent it from exceeding a preset safe limit. If the temperature climbs beyond this threshold, the switch cuts power to the gas valve or burner, stopping heat production to avoid dangerous overheating.

Typically, this switch is a bimetallic sensor or electronic temperature sensor. When the furnace operates normally, the air flowing over the heat exchanger cools it down, keeping the temperature within safe limits. If airflow is restricted or the furnace malfunction causes heat buildup, the high limit switch activates.

Where Is the High Limit Switch Located in a Furnace?

The high limit switch is usually mounted near the furnace’s heat exchanger or on the blower compartment. It is often attached to the furnace plenum or inside the air handler where it can accurately measure the inside temperature.

Accessing it depends on the furnace model but generally requires removing the front panel of the furnace. Because this is a safety part linked to gas and electrical components, any inspection should be handled by a qualified HVAC professional.

How Does the High Limit Switch Work?

The high limit switch functions as a temperature sensor connected to the furnace control board. It continuously monitors furnace temperature. If the temperature exceeds the threshold, the switch opens the electrical circuit to the burner igniter or gas valve.

This action stops the flow of gas and combustion process, effectively powering down the furnace. After the temperature returns to normal, some high limit switches reset automatically. Others may need to be manually reset or replaced if faulty.

Key Components of the High Limit Switch System

• Sensing Element: Detects temperature rise inside the furnace.
• Switch Assembly: Opens or closes the circuit based on temperature readings.
• Connection to Furnace Control: Signals the furnace to shut off gas or burner when activated.

Why Is the High Limit Switch Important for Furnace Safety?

The primary importance of the high limit switch lies in protecting the furnace and home from potential hazards caused by overheating. Without this safety feature, excessive heat could damage the furnace’s heat exchanger, creating cracks and leading to carbon monoxide leaks.

Overheating can also pose fire risks, especially if dust buildup or blockages restrict airflow. The high limit switch functions as an early warning and emergency shutoff device to avoid costly furnace damage or harmful safety issues.

Common Causes of High Limit Switch Activation

Several factors cause the high limit switch to trip frequently, including:

• Blocked or Dirty Air Filters: Restrict airflow and cause heat buildup inside the furnace.
• Blower Motor Malfunction: If the blower doesn’t circulate air properly, the furnace overheats.
• Closed or Blocked Vents: Reduced airflow back through the system raises heat.
• Faulty Thermostat Settings: Ineffective cycling causes continuous combustion and heat build-up.
• Dirty Heat Exchanger: Deposits and debris reduce heat dissipation efficiency.

Symptoms of a Faulty or Tripped High Limit Switch

Understanding the signs that relate to a high limit switch can help homeowners identify furnace issues early. Common symptoms include:

• Furnace shutting off prematurely after firing up.
• Frequent short cycling (constantly turning on and off).
• Furnace blower running, but no heat being produced.
• Burner won’t ignite or stay lit consistently.
• Unusual warm or hot furnace cabinet.

Troubleshooting and Resetting the High Limit Switch

If the high limit switch trips, first check for airflow problems. Replace dirty air filters, open any closed vents, and ensure the blower motor runs smoothly. Most issues stem from restricted airflow.

Some high limit switches are designed to reset automatically once the furnace cools down, while others have a manual reset button—a small red tab near the switch. Pressing this tab resets the switch, but if it continually trips, a professional inspection is necessary.

Steps to Troubleshoot

1. Turn off the furnace power.
2. Inspect and replace air filters if dirty.
3. Check and clean vents and registers.
4. Verify the blower motor function.
5. Reset the switch if applicable.
6. Turn power back on and monitor furnace operation.

When Should the High Limit Switch Be Replaced?

Replacement is recommended if the switch fails to reset, causes frequent false trips without a clear airflow problem, or is physically damaged. Over time, the bimetallic sensor or electronic components can wear out. A malfunctioning switch compromises furnace safety and efficiency.

Only certified HVAC technicians should replace high limit switches as improper installation can lead to operational hazards.

How to Prevent High Limit Switch Issues

Proactive maintenance helps avoid problems related to the high limit switch:

• Regularly Replace or Clean Air Filters: Prevents airflow restrictions.
• Schedule Annual Furnace Inspections: Ensures blower motor and heat exchanger function well.
• Keep Vents and Registers Open and Clear: Supports proper airflow.
• Maintain Proper Thermostat Settings: Avoid constant or extended burner operation.

High Limit Switch vs. Other Furnace Safety Controls

Furnaces rely on multiple safety components working in tandem, including:

Safety Device	Function	Relation to High Limit Switch
Flame Rollout Switch	Detects burner flame escaping heat exchanger.	Shuts furnace down if flame rollout occurs; complements high limit switch protection.
Pressure Switch	Ensures inducer motor creates proper draft before ignition.	Keeps furnace safe during ignition sequence; works before high limit trips.
Flame Sensor	Confirms burner flame presence to prevent gas leaks.	Shuts off gas if no flame is detected; unrelated to temperature monitoring.

The high limit switch specifically focuses on temperature safety, preventing heat-related damage.
