Choosing the right thyristor heater controller affects temperature stability, safety, and energy efficiency for resistive heating systems. The table below summarizes five relevant Amazon products selected for heater, motor, and heat-cable control applications.
| Product | Brand | Key Use |
|---|---|---|
| AC 110V 230V 10000W Voltage Regulator | Dpofirs | High-power resistive heater/motor control |
| AC SCR Voltage Regulator Dimmer 10000W | LiebeWH | Industrial heating, furnace, large motors |
| AC 110V 10000W SCR Electronic Voltage Regulator | Estink | High-power dimming and thermoregulation |
| Electronic Voltage Regulator PWM Controller 10000W | Yosoo Health Gear | Motor speed and resistive heating control with casing |
| ThermaCord 120v Heat Cable Controller | Radiant Solutions Company | Outdoor heat cable thermostat; weatherproof |

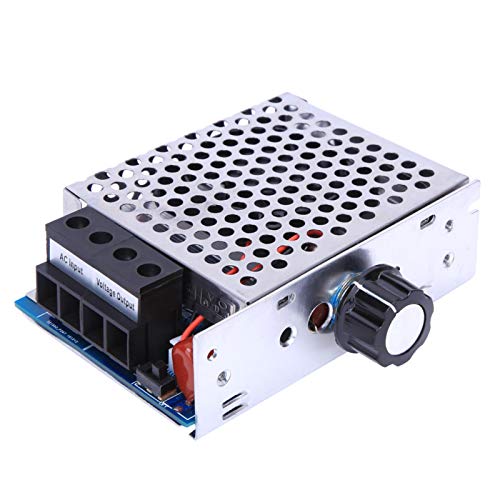

AC 110V 230V 10000W Voltage Regulator, Electronic Thyristor Voltage Regulator
This unit is designed for high-power resistive loads such as electric furnaces and heaters. The manufacturer describes a circuit that provides accurate control voltage without hysteresis, allowing smoother power transitions. The regulator can ramp from ~10V up to near input voltage when a resistive load is powered on from zero.
Additional features include an RC absorption circuit on the thyristor to mitigate voltage spikes and an upgraded fan with intelligent switch control to manage thermal dissipation. These features are aimed at enhancing reliability under continuous or heavy-duty operation.
AC SCR Voltage Regulator Dimmer 10000W Super High Power Intelligent Control
This SCR-based controller is specified with full copper 75A binding posts, targeting applications that require robust current connections. It supports AC 110–230V and is described as suitable for electric furnaces, water heaters, lamps, and large motors.
The product emphasizes the same non-hysteresis control circuit and an RC absorption network added to the thyristor. The combination of high-current terminals and the absorption circuit suggests suitability for heavy resistive loads where transient suppression and secure wiring matter.
AC 110V 10000W SCR Electronic Voltage Regulator, High Power Motor Speed Controller
This module focuses on thermoregulation and motor speed control for high-power applications. The product features the same basic control philosophy: accurate voltage regulation without hysteresis and a start-from-10V behavior when powering resistive loads from zero.
Manufacturer notes include the RC absorption circuit to reduce electrical interference and an intelligent fan to improve heat dissipation. These characteristics are relevant when continuous duty cycles or variable loads are expected.
Electronic Voltage Regulator, Super High Power Thyristor PWM Controller 10000W
This device combines a protective aluminum shell with a claimed PWM-style control and a unique circuit for accurate control voltage without hysteresis. It includes an upgraded fan with intelligent control and is presented for applications like hydroponics, inline duct fans, and ceiling fans as well as resistive loads.
The housing and fan suggest easier integration into systems where enclosure and thermal management are required. For heater control, the metal shell can offer improved protection and mounting options compared to bare modules.
ThermaCord 120v Heat Cable Controller, Weatherproof Outdoor Thermostat
Unlike the SCR dimmers above, this unit is a purpose-built heat cable controller with a bi-metal thermostat. It turns heat cables on and off at preset thresholds (turns on at ~37°F, off at ~50°F per specification) and is UL-listed for outdoor use.
For systems where a straightforward, temperature-based switch for heat tracing is needed, this product offers weatherproof construction, UL certification, and compatibility with a wide range of heat cables. It is not an SCR phase-angle controller but serves as a reliable thermostat option for outdoor or exposed installations.
Buying Guide: Choosing A Thyristor Heater Controller
Matching a controller to your application requires checking electrical, thermal, and system-level requirements. Below are key considerations to evaluate.
Power Rating And Current Capacity
- Continuous Current and Voltage: Ensure the controller’s rated AC voltage and continuous current match or exceed the heater/motor nameplate values. Many SCR dimmers list a high maximum wattage—confirm the actual current and terminal ratings (amps) for continuous use.
- Terminal Quality: Heavy-duty copper binding posts or screw terminals provide more reliable connections for high-current heater circuits.
Thermal Management
- Heat Sinks And Fans: Thyristors generate heat under load. Controllers with active fans or large heat sinks handle continuous operation better. Check whether the fan is thermostatically controlled or runs continuously.
- Enclosure: An aluminum shell or enclosed housing improves safety and mechanical protection compared to bare PCB modules.
Control Method And Compatibility
- Phase-Angle (Thyristor) Vs. On/Off Thermostats: Thyristor controllers modulate voltage continuously for smooth heat control. Mechanical or electronic thermostats switch the load on/off, which is simpler but can produce larger temperature swings.
- Load Type: Resistive heaters (electric resistance, cartridges, heating elements) are ideal for SCR phase-angle control. Inductive loads (motors) may require additional suppression or different controller designs.
Electrical Protections And Noise Suppression
- RC Snubbers / Absorption Circuits: An RC absorption/snubber circuit across the thyristor reduces voltage spikes and EMI, which is important for protecting the controller and nearby electronics.
- Surge And Transient Ratings: Look for controllers with transient suppression details or recommendations for external MOVs/fuse protection if your power environment has spikes.
Safety, Standards, And Installation
- Certifications: UL or similar approvals matter, especially for permanent installations or outdoor use. Weatherproof ratings matter for external heat cable thermostats.
- Fusing And Overcurrent Protection: Always provide appropriately sized fuses or circuit breakers upstream of the controller per local electrical codes.
- Grounding And Mounting: Ensure proper chassis grounding and secure mounting to a heat sink or panel for thermal dissipation and mechanical safety.
Control Precision And Hysteresis
- Hysteresis Behavior: Products that advertise “no hysteresis” claim finer control during power transitions. Consider whether your process benefits from smooth phase-angle control or from differential switching with hysteresis.
- Start-Up Behavior: Controllers that ramp from a low voltage (e.g., 10V) may reduce inrush stress on elements, which can extend heating element life compared to immediate full-voltage application.
Application Fit: Heater Tracing Vs. Process Heating
- Heat Tracing / Outdoor Cables: Use dedicated thermostats or UL-listed controllers designed for heat cables, especially outdoors.
- Process Furnaces And Kilns: High-power SCR controllers with absorption circuits and active cooling are more appropriate for industrial resistive heating.
Maintenance And Replacement Parts
- Modular Components: Choose controllers with replaceable fans, accessible terminals, and clear mounting options to simplify maintenance.
- Spare Thyristors And Components: For long-term service, consider availability of compatible thyristor components or alternative modules that match electrical ratings.
Comparison Perspectives
- Performance vs. Durability: Metal-enclosed controllers with active cooling generally offer better longevity for continuous high-power applications than exposed modules.
- Precision vs. Simplicity: SCR phase-angle controllers provide smoother control and finer temperature regulation. Mechanical thermostats are simpler but less precise. Choose based on required control resolution and environmental conditions.
- Cost of Integration: Factor in additional parts—fuses, filters (MOVs/EMI), thermal sensors, and enclosures—when selecting a controller for a specific installation.
