Choosing the right components for an in-line coolant heater system affects flow control, durability, and temperature performance. Below is a concise comparison of five targeted products that match common in-line heater needs: shutoff valves, control valves, reinforced hoses, and junction fittings.
| Product | Brand | Primary Feature |
|---|---|---|
| 2Pack In-Line Shut Off Valve For 5/8″ Heater Hose | Boltigen | Brass barb valves, stainless clamps, -40°F to 230°F |
| JEGS Inline Water Control Valve (5/8″) | JEGS | Dash or wall mount valve with knob and bezel for temperature control |
| Boltigen 5/8 Inch Heater Hose, 15 Feet | Boltigen | EPDM, SAE J20R3 D2, 100 PSI, -40°F to 257°F |
| EVIL ENERGY 3/8″ Heater Hose 10FT With 10 Clamps | EVIL ENERGY | EPDM, 100 PSI, SAE 20R3, 10 ft length with clamps |
| Hirificing Heater Core Hose T-Connector | Hirificing | T-shaped junction for heater core, upgraded plastic, OEM fit |
2Pack In-Line Shut Off Valve For 5/8″ Heater Hose
This kit by Boltigen includes two 5/8″ brass barb shut off valves and four stainless steel clamps. The plug-to-connect design enables quick connections at both ends for a tight seal. The product spec lists a working temperature range from -40°F to 230°F.
Pressure ratings are provided: 150 PSI for steam and 600 PSI for water, oil, and gas. The brass construction and included clamps are intended to support reliable sealing in heater hose assemblies. This kit suits applications where inline isolation or flow shutoff is required for maintenance or seasonal system control.

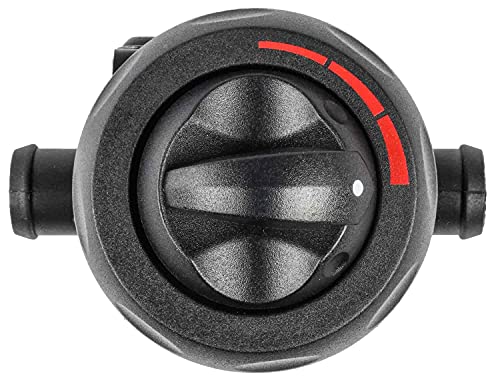

JEGS Inline Water Control Valve 5/8″
The JEGS inline water control valve is designed to act as an adjustable temperature control when used with auxiliary heaters. It features a 5/8” inlet and outlet and includes the valve body, a control knob, and a bezel for dash or wall mounting.
Its intended use is to modulate hot coolant flow to an auxiliary heater, which provides a local method for adjusting heater output. The mounting options make it practical for installations where user access or visual feedback is required. The included bezel and knob support straightforward installation and operation.
Boltigen 5/8 Inch Heater Hose 15 Feet
Boltigen’s 15-foot heater hose is made from premium EPDM with two spiral layers for reinforcement. Key specs include an inner diameter of 5/8″, an outer diameter of 0.94″, and a working temperature range of -40°F to 257°F. Working pressure is listed at 100 PSI.
This hose is intended for versatile coolant and antifreeze applications and is built to SAE-related standards (SAE J20R3 D2 compatible). The spiral reinforcement aims to reduce kinking while maintaining flexibility during routing through engine bays or heater lines.

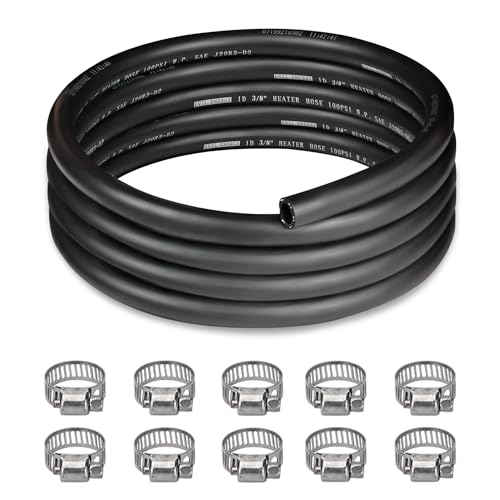

EVIL ENERGY 3/8″ Heater Hose 10FT With 10 Clamps
This EVIL ENERGY hose is constructed from EPDM rubber and meets SAE 20R3 standards. Dimensional specs list a 3/8″ ID with a 10-foot length. The product features a 100 PSI working pressure and a burst pressure of 300 PSI, with a temperature range of -40°F to 257°F.
The listing includes 10 hose clamps, which supports secure connections for inline heater installations. This combination of EPDM construction and included clamps addresses common durability and sealing requirements for coolant lines routed to or from an inline heater device.
Hirificing Heater Core Hose T-Connector Junction
The Hirificing T-shaped hose junction is designed for direct replacement of OE heater hose fittings. It is made from an upgraded plastic material intended to resist temperature extremes and to maintain a tight seal at firewall junctions.
Key claims include a stable T-shaped design, accurate OEM-aligned sizing for direct fit, and improved sealing to reduce coolant leaks. The connector is presented as a repair-first solution for heater core inlet/outlet splits and other three-way coolant routing needs.
Buying Guide For In-Line Coolant Heater Components
1. Hose Material And Temperature Range
Select hoses with materials and temperature ratings that match your application. EPDM hoses are common for engine coolant systems and offer good resistance to coolant and heat up to roughly 257°F. Silicone
2. Pressure Ratings And Burst Strength
Working pressure and burst pressure indicate how the hose or valve will perform under system pressure spikes. For typical coolant circuits, a 100 PSI working pressure with a high burst rating gives a margin for safety. For steam or atypical fluids, verify the manufacturer’s steam ratings separately.
3. Hose Diameter And Fitment
Match hose ID to the heater and existing coolant connections. Common sizes include 5/8″, 3/8″, and 5/16″. A correct ID avoids flow restriction or leakage. Check OD and tolerances as well for clamp compatibility and routing space.
4. Reinforcement And Flexibility
Reinforced hoses (spiral layers, braided polyester) resist kinking and vacuum collapse while remaining flexible for tight routing. Reinforcement is important where hoses pass near engine components or must bend sharply.
5. Valve Type And Control Options
Choose between simple shutoff valves and adjustable control valves depending on how you want to manage heater output. A shutoff valve is useful for isolating circuits during maintenance. An inline control valve with a knob provides user-adjustable flow and temperature control for auxiliary heating.
6. Connection Method And Clamps
Barb fittings with matching hose clamps are standard. Look for kits that include stainless steel clamps for corrosion resistance. Quick plug-to-connect designs can simplify installation but verify sealing integrity and pressure compatibility.
7. Mounting And Installation Considerations
Consider whether a valve needs dash or wall mounting and if included bezels, knobs, or brackets meet your installation goals. Ensure hoses are routed away from hot exhaust parts and moving components. Use proper clamp torque and support to avoid chafing or fatigue.
8. Compatibility With Coolants And Fluids
Confirm that hose materials are compatible with your coolant type (ethylene glycol, propylene glycol) and any additives. Some hoses specifically call out suitability for water, antifreeze, fuel, or oil—match the listed compatibility to your system media.
9. Durability And Environmental Resistance
Look for resistance to ozone, oils, UV, and abrasion for hoses exposed to engine bays. Plastic connectors should specify high/low temperature resilience and pressure testing to reduce the risk of cracks or leaks over time.
10. Redundancy And Serviceability
Design installations so individual components can be serviced without disassembling large portions of the system. Inline shutoff valves, isolation fittings, and accessible mounts increase serviceability. Keep spare clamps and short hose sections on hand for repairs.
Comparison Perspectives
- Performance-Focused: Prioritize higher temperature and burst ratings, silicone construction, and braided reinforcement for extreme conditions.
- Maintenance-Focused: Choose components with isolation valves, quick-connect fittings, and included clamps for faster service.
- OEM-Fit Replacement: Use T-connectors and OEM-dimension fittings for firewall junctions and heater core replacement to maintain factory routing.
- Cost-Effective Builds: EPDM hoses and brass shutoff valves offer reliable performance at moderate cost for standard heating systems.
Use the guide above to evaluate hoses, valves, and fittings by application: ambient extremes, system pressure, routing complexity, and service access. Matching component specifications to your in-line coolant heater goals ensures consistent performance and reduced downtime.
