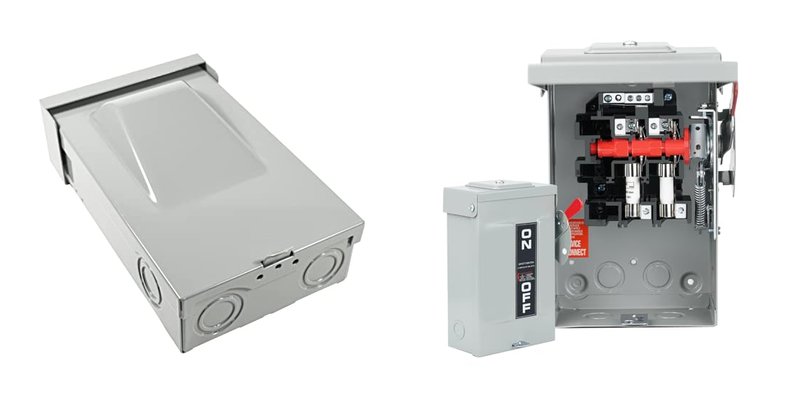

Choosing the right disconnect box for your mini split is essential for ensuring safe, quick power disconnection and compliance with electrical codes. These boxes protect your HVAC equipment while facilitating maintenance and emergency shutdowns. Below is a comparison table of top disconnect boxes ideal for mini splits, highlighting their features, amperage ratings, and outdoor suitability.
| Product | Brand | Amperage | Outdoor Rating | Special Features |
|---|---|---|---|---|
| HQRP Non-Fusible A/C Disconnect Switch | HQRP | 60A | Type 3R Rainproof | Pullout handle for ON/OFF control, metal rainproof enclosure |
| 2P 30Amp 110/240V Fusible Safety Switch | JINDOUZI | 30A | NEMA 3R Dustproof | Fuses included, quick connect/disconnect, lockable |
| ULXIOM Universal Disconnect Switch IP66 | ULXIOM | 63A | IP66 Waterproof & Dustproof | Sealing ring, waterproof connector, versatile 2-phase use |
| 60 Amp Non-Fusible Safety Switch Box by MUJURUR | MUJURUR | 60A | NEMA 3R Outdoor Rust Resistant | Galvanized steel housing with anti-corrosion coating |
| Diversitech Mini-Split Electrical Installation Kit | Diversitech | N/A (Kit) | Designed for Mini-Split HVAC | Includes disconnect, whip, sleeve & surge protector |
HQRP Non-Fusible A/C Disconnect Switch for Mini Split
The HQRP Non-Fusible Disconnect Switch is a reliable choice for mini split systems requiring a 60-amp, 1-phase disconnect. It operates safely at 120/240VAC with a 3-wire, 2-pole configuration. The metal Type 3R enclosure is designed for outdoor conditions, featuring a rainproof design that protects internal components from moisture and weather exposure. The pullout handle provides clear ON/OFF control, simple to operate for service or emergency shutoff. UL Listing assures compliance with necessary electrical standards, making it a durable, approved solution for HVAC professionals and homeowners alike. This box is best suited for those needing a basic, non-fusible disconnect that balances protection and convenience outdoors.
JINDOUZI 2P 30Amp Fusible Disconnect Safety Switch Box
This 30-amp fusible disconnect switch by JINDOUZI is designed for precise protection of mini split and other outdoor equipment. It features a quick connect and disconnect handle on an external hinge, allowing rapid power shutdown during emergencies. Equipped with internal fuses, the box safeguards against overloads and short circuits. The NEMA 3R metal enclosure is thick, durable, dustproof, and prevents insects or small animals from entering. Additional safety features include an anti-misoperation design and the ability to add locks for security. Ideal for installations requiring fusible overcurrent protection with outdoor-grade robustness.
ULXIOM Universal Disconnect Switch – IP66 Waterproof
The ULXIOM Universal Disconnect Switch delivers superior waterproof performance with an IP66 rating, making it highly suitable for harsh outdoor environments. Rated for 63 amps and 440 volts AC, it supports various industrial machinery, switchboards, or mini split HVAC units requiring heavy-duty disconnect capabilities. Its design includes a waterproof connector and an internal sealing ring in the lever to prevent dust and water ingress. This versatility allows it to serve as a general-duty disconnect or a 60 amp breaker box substitute, ideal for demanding applications where weather protection and electrical safety are paramount.
MUJURUR 60 Amp Disconnect Switch Box with Rust Protection
This 60 amp non-fusible disconnect box from MUJURUR features a robust galvanized steel enclosure with anti-corrosion and rust-preventive paint, ensuring long-lasting performance even in severe weather. Meeting NEMA 3R standards, it is suitable for indoor or outdoor applications. The spacious interior allows easy wiring and bending, simplifying installation. Its industrial-style casing resists scratches and physical damage. This disconnect switch fulfills the needs of users seeking durable, aesthetically clean solutions with straightforward power interruption capabilities for their mini split HVAC units.
Diversitech Mini-Split Electrical Installation Kit with Disconnect
Diversitech offers an all-in-one electrical installation kit built specifically for mini-split and heat pump systems. The included electrical disconnect ensures safe and easy power shutoff, paired with other essential components such as a power line whip, through-wall sleeve, drain line adapter, and surge protector. This kit supports streamlined HVAC installation, ensuring components are compatible and of trusted quality. It is an excellent choice for contractors or DIYers wanting a complete, certified package to support mini split setup and electrical safety.
Buying Guide for Mini Split Disconnect Boxes
When selecting a disconnect box for a mini split system, prioritize these key factors:
- Amperage Rating: Choose a disconnect box rated for at least the maximum current of your mini split unit, typically between 30 to 60 amps.
- Fusible vs Non-Fusible: Fusible disconnects offer overcurrent protection with replaceable fuses; non-fusible rely on circuit breakers elsewhere but provide simple power interruption. Select based on local code and system protection requirements.
- Outdoor Rating and Enclosure Type: Look for enclosures meeting NEMA 3R or IP66 standards to guarantee protection from rain, dust, and extreme weather.
- Material Durability: Galvanized steel or heavy gauge metal offers corrosion resistance and physical protection. Anti-rust coatings extend outdoor lifespan.
- Ease of Installation and Use: Features like pullout handles, quick connect switches, and ample wiring space simplify servicing and safety shutdowns.
- Safety and Compliance: UL Listing or equivalent certifications ensure the product meets electrical safety standards.
- Additional Components: For comprehensive kits, consider options including surge protectors, line whips, and wall sleeves for a full installation solution.
- Locking and Security: To prevent unauthorized access, especially in outdoor or public locations, pick disconnects with lockable features or ability to add padlocks.
Evaluating these perspectives will help you select the best disconnect box tailored to your mini split system’s electrical needs and environmental conditions.
