Cartridge heaters provide compact, high-temperature solutions for immersion, mold, and industrial heating needs. This guide reviews five 120V cartridge heaters that cover a range of wattages, thread sizes, and tube lengths. The table below summarizes the selected models to help you compare specs at a glance.
| Model | Power | Thread/Size | Tube Length |
|---|---|---|---|
| DERNORD 1500W 3/4 Inch | 1500W | 3/4 Inch Thread | 200mm (7.9″) |
| DERNORD 1000W 3/4 Inch | 1000W | 3/4 Inch Thread | 200mm (7.9″) |
| DERNORD 750W 1/2 Inch | 750W | 1/2 Inch Thread | 305mm |
| DERNORD 500W 1/2 Inch | 500W | 1/2 Inch Thread | 152mm (6″) |
| DERNORD 250W 8mm Diameter | 250W | Tube Dia: 8mm | Wire Length 320mm |

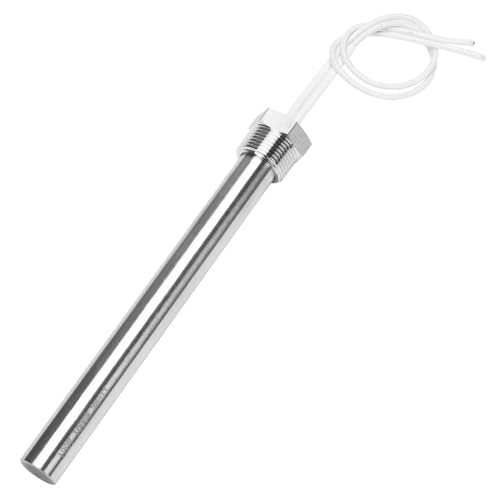

DERNORD Immersion Cartridge Heater 120V 1500W 3/4 Inch
Key Features: Cartridge Heater 120v 1500w, Thread: 3/4 Inch, Tube length: 200mm (7.9 Inch)
This model offers a high wattage solution suitable for applications requiring rapid heat-up and sustained power. The 3/4 inch threaded mounting is common for immersion heaters and allows secure installation in threaded fittings. The 200mm tube length places the heating element well within reservoirs or sleeves. Consider system compatibility for power density and ensure appropriate control and safety devices are used with the 1500W rating.
DERNORD Immersion Cartridge Heater 120V 1000W 3/4 Inch
Key Features: Cartridge Heater 120v 1000w, Thread Size: 3/4 Inch, Tube Length: 200mm
The 1000W variant balances power and manageability for medium-sized heating tasks. The 3/4 inch thread provides the same mounting versatility as the 1500W, but with lower power density, which can reduce stress on small tanks and improve control precision. This option is suitable where faster recovery is needed than low-wattage units but without the full output of the 1500W option.

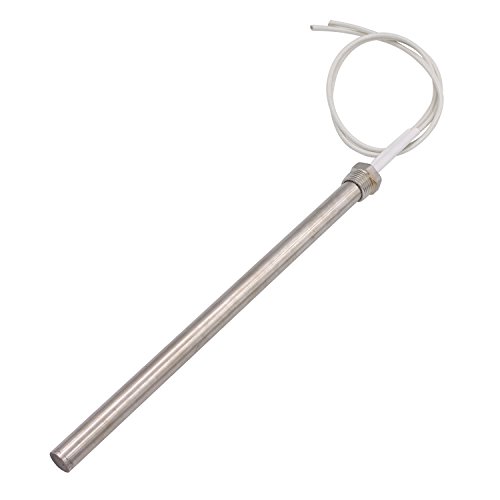

DERNORD Cartridge Heater 120V 750W 1/2 Inch Thread
Key Features: Cartridge Heater 120v 750w, Thread: 1/2 Inch, Tube length: 305mm, Tube diameter:15.8mm
The 750W model with a longer 305mm tube is useful for applications requiring heat along an extended insertion length. A 1/2 inch thread size fits smaller fittings and permits use in more compact housings. The larger tube diameter compared to tiny cartridge types can affect heat transfer and mounting tolerances. Verify pocket diameter and ensure snug mounting for efficient heat conduction.
DERNORD Immersion Cartridge Heater 120V 500W 1/2 Inch
Key Features: Cartridge Heater 120v 500w, Thread: 1/2 Inch, Tube length: 152mm (5.99 Inch)
This mid-range 500W cartridge heater is suited for smaller tanks, lab equipment, and localized heating where moderate power is required. The 1/2 inch thread is common in compact installations. The 152mm tube length positions the heater for shorter immersion depths. Expect moderate warm-up times and lower current draw compared to higher-wattage units.

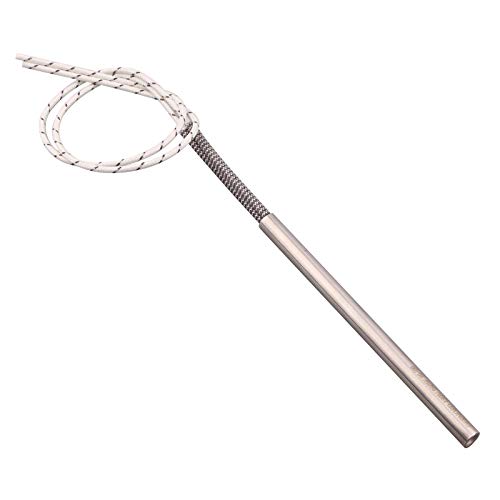

DERNORD 120V 250W Cartridge Heater Stainless Steel
Key Features: Rated Voltage: 120V; Power: 250W, Tube diameter: 8mm (0.32 Inch), Wire Length(Approx.): 320mm (12.6 Inch)
The 250W stainless steel cartridge is a low-power option with a small 8mm diameter suited for tight pockets and precision heating. The extended wire length offers flexible routing for control connections. Use this model for gentle heating, maintaining temperatures, or where surface area limits the heater size. Smaller diameter and lower wattage typically lead to longer warm-up times but more controlled thermal responses.
Buying Guide: Choosing The Right 120V Cartridge Heater
Selecting the appropriate cartridge heater requires matching electrical, mechanical, thermal, and control requirements. Below are the primary considerations to evaluate before purchase.
Wattage And Power Density
Wattage determines how quickly a heater can raise temperature and how much heat it can supply. Higher wattage models (e.g., 1000–1500W) are for rapid heating or larger volumes. Lower wattages (e.g., 150–500W) suit smaller volumes and precise control. Consider power density (W/cm²) relative to the contact area—high power density needs better conduction and cooling.
Voltage Compatibility And Electrical Supply
All products listed are 120V. Confirm your supply circuit, breaker rating, and wiring gauge. High-wattage heaters draw higher current; ensure wiring and protection match the heater rating and applicable electrical codes.
Thread Size, Tube Diameter, And Length
Thread size affects mounting—1/2″ and 3/4″ are common for immersion fittings. Tube diameter determines the pocket fit; small diameters fit tight holes but have different thermal mass. Tube length must match insertion depth to place the heater element where heat is needed without exposing heating zones.
Material And Construction
Stainless steel tubes are corrosion-resistant and suitable for many fluids. Consider sheath material compatibility with the medium (oils, water, chemical solutions). Construction quality—lead sealing, terminal protection, and overall finish—affect longevity in harsh environments.
Thermal Management And Control
Cartridge heaters often require external control: thermostats, PID controllers, or relays. For safety and long life, include overtemperature protection such as thermal fuses or sensors. Proper mounting to ensure good thermal contact reduces hot spots and extends element life.
Installation And Mounting
Threaded heaters require matching nuts and sealing methods to prevent leaks in immersion applications. For cartridge-in-sleeve use, ensure a tight interference fit or use thermal paste to improve conduction. Check orientation and strain relief for lead wires to prevent mechanical stress.
Application-Specific Factors
- Immersion Heating: Prefer threaded immersion heaters with appropriate corrosion resistance and sealing.
- Mold/Cavity Heating: Use heaters sized for quick response and ensure correct fit within drilled holes.
- Laboratory/Precision: Lower wattage and smaller diameter units allow gradual heating and finer control.
Safety And Regulatory Considerations
Confirm equipment meets relevant safety standards for your industry. Use properly rated fuses, ground connections, and circuit protection. For flammable or hazardous environments, follow area classification and electrical safety codes.
Durability And Maintenance
Expect heater lifespan to depend on thermal cycling, mounting quality, and operating temperature. Plan for periodic inspection of terminals, wiring insulation, and sheath condition. Replace units showing corrosion, insulation damage, or performance drops.
Comparison Perspectives
- Performance vs. Control: High-wattage heaters deliver speed but need precise control systems; low-wattage units favor stability.
- Fit vs. Heat Transfer: Larger diameter tubes transfer heat more effectively but require larger pockets; smaller diameters fit compact spaces but with lower transfer area.
- Threaded vs. Bare Cartridge: Threaded models simplify immersion mounting; bare cartridges are suited for press-fit or sleeve installations.
When selecting a 120V cartridge heater, weigh the operational environment, required heat output, mechanical constraints, and control strategy. Matching these parameters to the heater’s specifications will optimize performance and service life.
