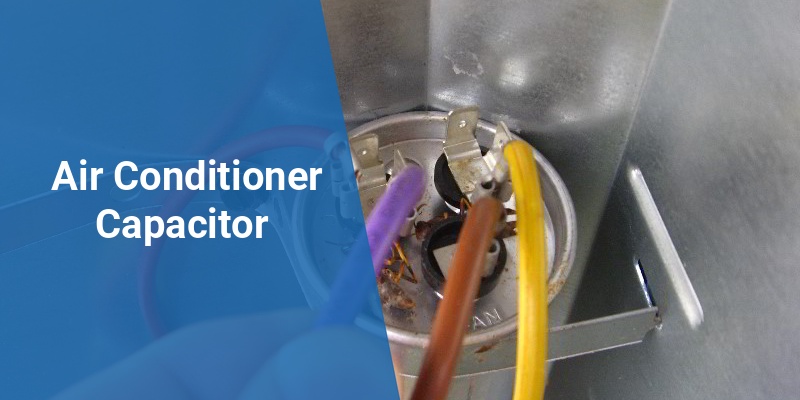

Air Conditioner Capacitor: AC Capacitor Wiring Colors, Functions, And Safe Replacement Guide

Air conditioner capacitors are essential components that support the motors in your AC system. Proper wiring, especially understanding AC capacitor wiring colors, is critical for efficient and safe operation. This guide covers capacitor functions, wire color standards, identification tips, safety precautions, and step-by-step replacement, all tailored for American AC systems.

Overview Of AC Capacitor Wiring Colors And Functions

Aspect	Detail
Common Capacitor Types	Start, Run, Dual-Run
Typical Wire Colors	Red, Yellow, Blue, Brown, Purple, Black, White
Terminal Labels	Common (C), Fan (F or FAN), Herm (H or HERM)
Main Function	Store and release electrical energy to AC motors
Replacement Risk	Electrical shock, equipment damage if miswired

What Does An Air Conditioner Capacitor Do?

An air conditioner capacitor stores and releases electrical energy to provide the torque required to start and run compressor and fan motors. Without the capacitor, AC motors may fail to start, run inefficiently, or overheat, leading to system breakdowns. Dual-run capacitors combine two capacitors in one unit, serving both the compressor and fan motors simultaneously.

Capacitor Types Found In AC Units

Start Capacitor

Start capacitors deliver a brief surge of energy to help the compressor or fan motor overcome initial inertia. They disconnect after the motor reaches proper speed.

Run Capacitor

Run capacitors provide continuous power stabilization, supporting the motor during operation and improving efficiency. They remain active while the motor is running.

Dual-Run Capacitor

Dual-run capacitors are most common in central AC systems, offering two separate capacitor functions (compressor and fan) in a single housing. These are identified by three terminals marked C, FAN, and HERM.

Key Terminal Markings On Capacitors

Capacitors use standard terminal markings to guide wiring:

• C (Common): Connects to power supply, often shares a return path
• FAN: Connects directly to the fan motor
• HERM (Hermetic): Connects to the compressor (hermetic meaning sealed)

On some capacitors, FAN may be replaced with F, and HERM with H.

AC Capacitor Wiring Colors In U.S. Systems

Capacitor wire colors differ between manufacturers and models. Many U.S. systems adopt the following colors:

• Red: Usually connects to power or the common terminal
• Yellow: Typically links HERM terminal to the compressor
• Blue: Sometimes used for connections to the common terminal
• Brown: Frequently connects to the fan motor terminal (FAN)
• Purple: Occasionally replaces brown for the fan connection
• Black: May also serve as common or ground, depending on the system
• White: Less frequent, sometimes used for neutral or as an alternate common

It is important to always confirm actual wire colors using wiring diagrams or labels on the unit. Mismatched colors or worn labels are possible, especially in older installations.

Common AC Capacitor Wiring Color Schemes

Function	Terminal Label	Typical Wire Color	Description
Compressor	HERM	Yellow	Delivers energy to the compressor motor
Fan Motor	FAN	Brown or Purple	Delivers energy to blower/fan motor
Common	C	Red or Blue	Shared ground/path for circuit completion

Identifying AC Capacitor Wiring Colors In The Field

Given the variety in color conventions, here are field-tested steps for safely identifying AC capacitor wiring colors:

1. Locate the unit-specific wiring diagram, often on the access panel or inside the electrical compartment door.
2. If the wiring diagram is missing or unreadable, check the capacitor’s terminals for markings (C, FAN, HERM) and corresponding wire colors.
3. Take a clear photo before disconnecting any wires, ensuring a reference for reassembly.
4. If colors are faded or non-standard, use a multimeter (with power disconnected) to trace continuity from component terminals to capacitor wires.

Never rely solely on color codes—they are helpful guidelines, but always confirm through labeling and reference documentation.

Reading An AC Wiring Diagram

Most American AC units feature a schematic diagram that illustrates terminal connections and wire colors among the capacitor, compressor, fan motor, contactor, and power supply. These diagrams:

• Clarify which wire controls each function
• Show the inter-relationship between compressor, fan, and power
• Help detect wiring errors or diagnose failures

Schematic symbols and color identifications are standardized but may have manufacturer-specific variations. Schematics are vital, especially when troubleshooting.

Safety Precautions When Handling AC Capacitors

Capacitors can store dangerous electrical charge even when the AC is off. Use these essential safety steps:

• Turn off AC power at the disconnect or main breaker.
• Verify zero voltage with a multimeter.
• Discharge capacitor by bridging its terminals with an insulated resistor or using a discharge tool; never use a screwdriver directly due to spark risk.
• Wear eye protection and insulated gloves.
• Take a picture of wiring configuration as backup before removal.

Replacing An AC Capacitor: Step-By-Step Guide

1. Shut down AC power at the main electrical panel and confirm with a multimeter.
2. Open the side access panel to locate the capacitor, typically a cylindrical or oval canister with two or three terminal posts.
3. Take a clear reference photo showing all wire positions and colors.
4. Discharge the capacitor safely.
5. Disconnect wires, noting which color corresponds to each terminal (C, FAN, HERM).
6. Remove the old capacitor, and install the new one, ensuring voltage and microfarad ratings match the original.
7. Reconnect wires: red or blue to C, brown or purple to FAN, yellow to HERM (verify using your reference photo and schematic).
8. Secure the new capacitor, replace the access panel, restore power, and test AC function.

Ensuring Proper Capacitance Ratings And Specifications

Always match the microfarad (μF) rating and voltage when selecting a replacement capacitor. Incorrect ratings can damage motors or cause system failures. If the original part’s rating is illegible, consult the unit’s manual, manufacturing schematic, or the manufacturer’s support line.

Common Signs Of Capacitor Failure In AC Units

• AC fan or compressor fails to start
• Humming sounds but no motor action
• System repeatedly trips breaker
• Visible bulges, leaks, or rust on the capacitor casing
• Delivery of warm versus cool air despite unit operation

Testing a suspected capacitor involves a multimeter set to capacitance mode. Any significant deviation from the labeled μF rating means replacement is warranted.

Tips For Identifying Non-Standard Or Faded Wiring Colors

• Trace wires to their component origins (compressor, fan).
• Label wires yourself with masking tape and marker before removing them.
• If uncertain, consult HVAC professionals to avoid costly or dangerous mistakes.

Avoid guessing—incorrect wiring, even of a single wire, can cause damage or pose safety risks.

Ensuring Code Compliance And Professional Assistance

AC repairs, especially involving capacitor replacement or rewiring, must adhere to local code requirements. Homeowners comfortable with minor electrical repairs may attempt capacitor replacement, but when in doubt, contact a certified HVAC technician for safe, code-compliant service.

Frequently Asked Questions About AC Capacitor Wiring Colors

• Are capacitor wire colors universal? – No. While yellow, brown, and red are common, color codes may vary between manufacturers and equipment age.
• What if my unit’s wires don’t match expected colors? – Rely on terminal function (C, FAN, HERM) and trace wires to their component (fan or compressor) using diagrams or a continuity tester.
• Can one capacitor serve both compressor and fan? – Yes, a dual-run capacitor is expressly designed for this purpose in U.S. systems.
• What tools are needed for safe capacitor replacement? – Multimeter, insulated pliers, screwdriver, eye protection, insulated gloves, and a discharge resistor or tool.
• Is reversing brown and yellow wires dangerous? – Yes. It can damage components and create fire or shock hazards.

Best Practices For AC Maintenance After Capacitor Work

• Keep capacitor terminals clean and free of corrosion
• Secure all wiring connections firmly—avoid loose wires
• Replace wire terminals if they seem corroded or frayed
• Recheck new capacitor operation after running the AC for 10 minutes
• Retain your wiring photo and diagram for future reference

By understanding AC capacitor wiring colors and functions, homeowners and technicians can promote optimal AC performance and reduce the risk of costly repairs. Proper identification, safe handling, and code-compliant installation are the foundations of reliable cooling system support.
