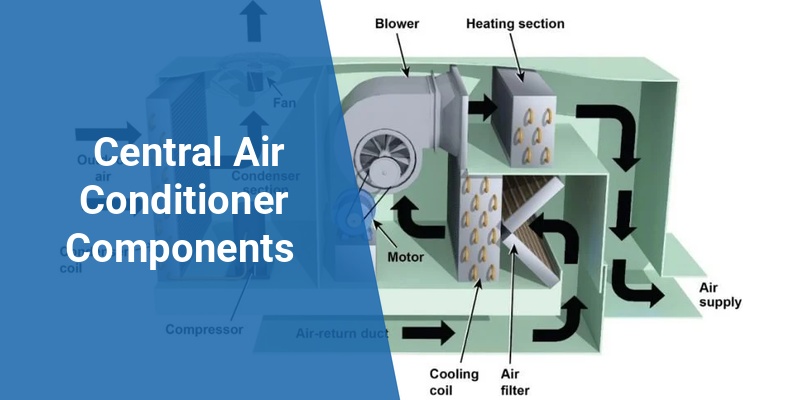

Central air conditioning systems are essential for maintaining comfort in American homes, especially during hot summer months. Understanding the key components of a central air conditioner helps homeowners make informed decisions about maintenance, troubleshooting, and upgrades. This guide explores all major parts of a central air conditioner, their functions, and how they work together to deliver efficient indoor cooling.
Summary Table Of Central Air Conditioner Components And Functions
| Component | Main Function | Location |
|---|---|---|
| Compressor | Circulates and pressurizes refrigerant | Outdoor unit |
| Condenser Coil | Dissipates heat from refrigerant | Outdoor unit |
| Evaporator Coil | Absorbs heat and cools air | Indoor unit (air handler or furnace) |
| Air Handler/Blower | Circulates air through ducts | Indoor unit |
| Thermostat | Regulates temperature and system operation | Interior wall |
| Expansion Valve | Controls refrigerant flow into evaporator | Indoor unit |
| Air Ducts | Deliver conditioned air to rooms, return air to system | Throughout building |
Primary Central Air Conditioner Components
Compressor
The compressor acts as the heart of the central air conditioner. It circulates refrigerant between the indoor and outdoor coils while also compressing low-pressure refrigerant vapor into a high-pressure, high-temperature gas. This process is essential for releasing absorbed heat outside and enabling the refrigerant to return indoors to cool the air.
Condenser Coil
Located in the outdoor unit, the condenser coil receives the high-pressure gas from the compressor. As outdoor air passes over the coil, the refrigerant releases heat it previously collected from inside the home. The refrigerant then transforms into a liquid state, ready for further cooling action. Routine maintenance of the condenser coil helps ensure peak system efficiency.
Evaporator Coil
The evaporator coil is housed inside the air handler or connected to the furnace ductwork. As warm air from the home is blown over this coil, the cold refrigerant inside absorbs heat, cooling the air and removing humidity. This chilled and dehumidified air is then distributed throughout the house.
Expansion Valve
The expansion valve, sometimes referred to as a metering device, regulates the flow of liquid refrigerant into the evaporator coil. It ensures the right amount of refrigerant enters so the coil can efficiently absorb heat, maximizing cooling and preventing coil freeze-ups.
Air Handler And Blower
The air handler contains a blower fan that moves conditioned air through the ductwork and into different rooms. The blower works in tandem with the evaporator coil to distribute cool air while drawing warm air from return vents for recooling.
Thermostat
A thermostat is the user interface for the entire system. It senses indoor temperature and sends on/off signals to the compressor, air handler, and blower. Modern thermostats offer programmable or smart features, improving energy savings and comfort.
Call 888-906-9139 for Free Local HVAC Quotes – No Obligation, Just Savings!
Air Ducts
Air ducts are the network of passages that transport cooled air from the central system to each room and return warm air back to the unit. Properly sealed and insulated ducts help maintain efficiency, minimize leaks, and improve air quality.
Additional Central AC System Components
Refrigerant Lines
The refrigerant moves between the indoor and outdoor units via two insulated copper lines: the larger suction line (cold, low-pressure) and the smaller liquid line (warm, high-pressure). Leak-free, properly insulated lines maintain system performance and prevent energy loss.
Drain Pan And Condensate Line
As the evaporator removes humidity, water condenses on the coil and drips into a drain pan. The condensate line then safely directs this water away from the unit, preventing water damage and indoor moisture issues.
Filter
The air filter traps dust, pollen, and allergens as air cycles through the unit. Clean filters improve system airflow, enhance indoor air quality, and protect key AC components from debris buildup.
Contactor And Capacitors
The contactor is an electrical relay that starts or stops the compressor and condenser fan based on thermostat signals. Capacitors store and release electrical energy to help start and regulate the operation of motors, increasing reliability and energy efficiency.
Fans
There are typically two types of fans: the indoor blower fan (in the air handler) and the outdoor condenser fan. The blower circulates indoor air, while the condenser fan removes heat from the outdoor coil, both ensuring adequate airflow.
Safety Switches And Sensors
Modern systems include built-in safety switches (e.g., float switch in the drain pan) and sensors (e.g., pressure sensors) to prevent damage in case of clogs, leaks, or electrical faults, protecting both the AC unit and your home.
Call 888-906-9139 for Free Local HVAC Quotes – No Obligation, Just Savings!
How The Components Work Together: The Cooling Cycle
A central air conditioning system operates based on a repeating refrigeration cycle, involving teamwork between all the key components: compressor, condenser, expansion valve, and evaporator. The process is as follows:
- Warm indoor air is drawn over the cold evaporator coil inside the air handler, where it loses heat and moisture to the refrigerant.
- The refrigerant, now warmed and vaporized, travels through the suction line to the compressor in the outdoor unit.
- The compressor pressurizes this gas and sends it to the condenser coil, where outdoor air dissipates the heat.
- The refrigerant cools down into a high-pressure liquid and then passes through the expansion valve, reducing its temperature and pressure before re-entering the evaporator coil.
- This cycle repeats until the thermostat senses the set temperature has been reached and signals the system to pause.
Types Of Central Air Conditioners And Their Component Configurations
Split-System Air Conditioners
Most American homes use split-system central air conditioners, where major components are located in two separate units: the outdoor condenser/compressor, and the indoor evaporator/air handler. Connecting refrigerant lines and electrical wiring join the two, while air ducts serve the entire house.
Packaged Air Conditioners
Packaged AC units are common in homes without basements or attics. Here, all major components (compressor, condenser, evaporator, air handler) are in a single outdoor cabinet, usually installed on the roof or a side concrete slab. Air is drawn from indoors to the packaged unit, cooled, and returned via one set of ducts.
Dual-Fuel Or Heat Pump Systems
Some systems incorporate both heating and cooling, such as heat pump central air conditioners. These use a similar set of coils and compressors but include a reversing valve to provide both cooling in summer and heating in winter by changing refrigerant direction and flow.
Smart And Advanced AC Components For Modern Comfort
Variable-Speed Compressors
Variable-speed or inverter-driven compressors adjust the cooling output to match current needs, enhancing energy efficiency, reducing noise, and maintaining consistent temperatures compared to traditional single-stage compressors.
Electronically Commutated Motors (ECMs)
Modern air handlers often use ECM blower motors, which automatically adjust fan speed for optimal airflow. This leads to lower energy bills, quieter operation, and more precise humidity control.
Smart Thermostats
Connected thermostats allow remote control, learning your comfort preferences, and providing real-time energy insights. Many systems now integrate with home automation for even easier AC management.
Call 888-906-9139 for Free Local HVAC Quotes – No Obligation, Just Savings!
Maintenance And Longevity Of AC Components
Importance Of Regular Maintenance
Consistent care for all air conditioner components is crucial for long-term reliability. Tasks such as cleaning the condenser and evaporator coils, replacing air filters, checking ductwork for leaks, and scheduling annual professional inspections ensure the system runs smoothly and efficiently.
Typical Lifespan Of Major Parts
| Component | Average Lifespan (Years) |
|---|---|
| Compressor | 10-15 |
| Condenser Coil | 10-15 |
| Evaporator Coil | 10-15 |
| Thermostat | 10+ |
| Blower/Air Handler | 15-20 |
| Air Ducts | 20-25 |
Common Problems Linked To Specific AC Components
| Component | Common Issues | Potential Solutions |
|---|---|---|
| Compressor | Failure to start, loud noises, overheating | Check capacitors, replace if needed, professional diagnosis |
| Evaporator Coil | Freezing up, reduced cooling, leaks | Clean coil, replace filter, repair refrigerant leak |
| Condenser Coil | Dirt buildup, inefficient cooling | Clean coil, ensure unrestricted airflow |
| Thermostat | Incorrect temperature, no response | Replace batteries, recalibrate, upgrade to smart model |
| Blower Fan | No airflow, weak air, unusual noises | Clean or replace motor, check belt/tension |
| Expansion Valve | Poor cooling, fluctuating performance | Professional inspection and calibration |
| Filter | Reduced airflow, dust accumulation | Replace regularly (every 30-90 days) |
Central Air Conditioner Components And Energy Efficiency
Role Of Core Components In Efficiency
Each major component directly affects the system’s energy efficiency. Clean coils, an efficient compressor, and well-insulated ductwork minimize energy use. Advanced features like variable-speed blowers and smart thermostats further reduce energy waste by automatically adjusting performance.
Upgrade Tips For Improved Efficiency
- Upgrade to a high-SEER (Seasonal Energy Efficiency Ratio) unit for better overall efficiency.
- Add zone control systems to focus cooling in used spaces and conserve energy elsewhere.
- Replace aging components—old thermostats, fans, coils—with new, energy-saving models.
- Seal and insulate all ductwork to prevent cooled air loss.
Indoor Air Quality And AC Components
Filtration Systems
Quality air filters and optional air purification systems (e.g., UV lights, electronic air cleaners) integrated into the air handler help reduce allergens, dust, and pollutants, supporting a healthier indoor environment.
Humidity Control
When properly sized and maintained, the evaporator coil and blower work to remove excess humidity from the air, enhancing comfort and preventing mold growth. Some systems offer dedicated dehumidification controls for especially humid climates.
Retrofitting And Upgrading Central AC Components
Component Compatibility For Retrofits
It’s often possible to upgrade individual parts—such as installing a smart thermostat, variable-speed fan, or high-efficiency coils—without replacing the entire system. Always consult an HVAC professional to ensure compatibility between new and existing components.
Costs And Return On Investment
Costs vary depending on the component, but upgrades like new thermostats, filters, and blower motors can pay for themselves over time through energy savings, longer equipment life, and enhanced comfort.
Frequently Asked Questions About Central Air Conditioner Components
What Component Is Most Prone To Failure?
The compressor is subject to the most wear due to its continuous operation and mechanical complexity. Regular tune-ups and proper refrigerant levels extend its lifespan.
Call 888-906-9139 for Free Local HVAC Quotes – No Obligation, Just Savings!
How Often Should Filters Be Changed?
Filters should be checked monthly and replaced every 30-90 days during peak cooling season, or more often in homes with pets or allergy sufferers.
What’s The Most Important Maintenance Step?
Keeping coils clean and filters changed are vital. Annual professional inspections are recommended for refrigerant charge and electrical component checks.
Glossary: Key Terms Related To Central Air Conditioner Components
- Compressor: Mechanical device that pressurizes refrigerant for heat transfer.
- Evaporator Coil: Cold indoor coil that absorbs heat from air.
- Condenser Coil: Outdoor coil where refrigerant releases heat.
- Expansion Valve: Device that meters refrigerant into the evaporator.
- Air Handler: Indoor unit housing the fan/blower and coil.
- Thermostat: Temperature-sensing controller for starting/stopping the AC system.
- SEER: Seasonal Energy Efficiency Ratio, a measure of AC efficiency.
Choosing The Right Central AC Components For Your Home
Selecting a reliable, efficient air conditioning system requires attention to component quality, proper sizing for your home, and professional installation. Focus on high-efficiency ratings, compatibility with modern controls, and advanced features like two-stage compressors or ECM blowers to maximize comfort and savings.
