When your air conditioner keeps blowing a fuse in the circuit board, it can leave your home uncomfortably hot and pose risks to HVAC components. This comprehensive guide covers the main reasons for repeated fuse issues, how professionals diagnose these problems, and actionable advice for safe, effective repairs. Find everything you need to protect your investment, restore comfortable temperatures, and prevent future fuse failures.
| Common Cause | Symptoms | Recommended Actions |
|---|---|---|
| Short Circuit | Immediate fuse blow, no power to AC | Inspect wires, replace damaged insulation |
| Electrical Overload | Frequent fuse replacements, tripping breaker | Check amp rating, reduce circuit load |
| Faulty Components | Inconsistent AC operation, hot smells | Test and replace bad parts (capacitor, transformer, compressor) |
| Dirty Air Filter | Poor airflow, strain on blower motor | Replace or clean filter regularly |
| Poor Installation/Connections | Recent install, abnormal noise, visible wire issues | Contact a certified HVAC technician |

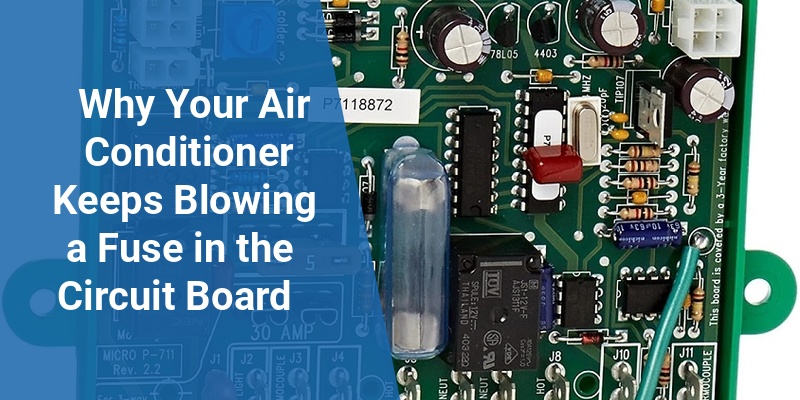

Understanding Air Conditioner Circuit Board Fuses
The fuse on your air conditioner’s circuit board acts as a safety device, cutting off power when excessive current or a fault is detected. It prevents fires and intensive damage to sensitive electronic parts. A blown fuse indicates an underlying electrical problem, not just a minor inconvenience.
What Is The Function Of The Fuse?
The fuse is a protective device located on or near the air handler or outdoor condenser unit’s circuit board. It usually resembles a glass or ceramic tube and stops the flow of electricity immediately if the current exceeds a safe threshold.
Without a functioning fuse, your unit is unprotected against surges, shorts, and potential electrical fires.
Key Types Of Fuses Used In AC Systems
- Cartridge Fuses: Cylindrical and commonly used in older systems.
- Blade Fuses: Look like automotive fuses; more common in modern residential units.
- Breaker/Resettable Fuses: Automatically restore power once tripped and reset, but not universally equipped.
Why Air Conditioner Fuses Keep Blowing: Most Common Causes
If your air conditioner keeps blowing a fuse in the circuit board, a range of potential issues could be at fault. **Some are relatively easy to fix, while others demand a technician’s expertise.**
Short Circuits Within The System
A short circuit occurs when conductors touch each other or grounding components, creating a path for uncontrolled current flow.**Damaged wires, deteriorated insulation, or contact between cable ends often cause these problems.**
- Visual wire inspection may reveal burn marks or melting insulation.
- Short circuits blow the fuse instantaneously when the system starts up.
Persistent, unexplained fuse blowouts often point directly toward a short somewhere in the wiring or components.
Call 888-906-9139 for Free Local HVAC Quotes – No Obligation, Just Savings!
Electrical Overload
Air conditioners are rated for a specific amperage. Connecting additional devices or large appliances to the same circuit can create an overload. **The fuse protects the system by blowing if too much current is drawn.**
- Review your home’s circuit loads with a multimeter or consult an electrician.
- A dedicated breaker for your air conditioner is always recommended.
Faulty Or Failing Components
Components inside both the indoor and outdoor sections of an AC unit may deteriorate over time. Failed capacitors, stuck relays, and, most commonly, the run/start capacitor or transformer can cause repeated blown fuses.
- Capacitor: If it bulges or leaks, it likely needs replacement.
- Transformer: Burned or noisy transformers often indicate shorts or overvoltage issues.
- Compressor: An internal short can cause very high current draw, blowing fuses instantly upon startup.
**Testing these components often requires specialized meters and training.**
Dirty Air Filters And Restricted Airflow
Clogged or dirty air filters block airflow, forcing blower motors to work harder. This increased load leads to higher current draw that may exceed the fuse’s rating. **Ignoring filter maintenance is a surprisingly common reason for electrical problems.**
- Regularly replace or clean air filters to maintain efficient operation and electrical safety.
Poor Installation Or Faulty Electrical Connections
Improper installation, especially with DIY wiring or during system upgrades, can introduce loose or unsecured connections.**Loose terminal screws, spliced wires, or inadequate wire gauge can cause erratic electrical behavior and frequent fuse blowouts.**
- Have all electrical work checked by certified HVAC professionals to ensure connections are tight and safe.
How To Diagnose The Underlying Issue: Step-By-Step Troubleshooting
Pinpointing the reason your air conditioner keeps blowing a fuse in the circuit board is essential before attempting any repairs. Correct diagnosis saves money and prevents further damage.
Step 1: Observe When The Fuse Blows
- If the fuse blows immediately after replacing it, a direct short or defective component is likely.
- If the fuse lasts for a while before failing, overheating, restricted airflow, or overloading the circuit could be the culprits.
Step 2: Visual Inspection
- Turn off all power at the breaker panel.
- Examine all visible wires and components for heat damage, discoloration, or burns.
- Look for loose terminal screws and connectors.
Visual cues provide essential early warning signs of damage or hazards.
Call 888-906-9139 for Free Local HVAC Quotes – No Obligation, Just Savings!
Step 3: Component Testing (Professional)
- Multimeters, continuity testers, and clamp meters help check for shorts and abnormal current draw.
- Test capacitors, transformer windings, contactor coils, and compressors according to manufacturer standards.
Diagnosing electronic boards and high-voltage parts is best left to qualified technicians.
Step 4: Check For External Factors
- Verify that no other major appliances share the same electrical circuit as your air conditioner.
- Confirm that the breaker rating matches your AC’s requirements.
Step 5: Replace The Blown Fuse
- Only use replacements matching the exact voltage and amp rating stamped on the original fuse.
- Never bypass the fuse or use a higher-rated fuse to temporarily solve the problem.
When To DIY And When To Call A Professional For A Blown AC Fuse
While some aspects of fuse troubleshooting are safe for homeowners, most require a licensed technician with the proper tools and training. Understanding your limits is essential for safety and efficiency.
Safe DIY Steps
- Turn off the power at both the thermostat and breaker panel before beginning any work.
- Replace or clean air filters regularly.
- Inspect exterior wires and components for obvious signs of wear or animal damage.
When To Call An HVAC Technician
- If you’ve gone through more than one fuse in a month without resolving the root issue.
- If there are burned smells, scorched wires, or unfamiliar noises from the system.
- If the system still refuses to operate after safe fuse replacement and basic troubleshooting.
- For any in-depth testing or component replacement (capacitors, transformers, compressors, relays).
Licensed HVAC technicians use specialized diagnostic tools and follow best practices to restore safety and efficiency.
Protecting Your AC System: Preventing Fuse Blowouts
Consistent electrical problems in your air conditioning system threaten comfort and can lead to costly repairs. Proactive maintenance and awareness offer the best safeguards for your system and home electrical safety.
Routine Filter Replacement
- Check filters monthly during heavy use.
- Replace basic filters every 1–3 months or as recommended by the manufacturer.
Schedule Annual Professional Maintenance
- Have a certified technician perform seasonal checkups before the cooling season starts.
- Tasks include checking electrical connections, lubricating motors, cleaning coils, and ensuring proper refrigerant charge.
Monitor Your Electrical Panel
- Label breakers clearly.
- Test breakers for proper operation annually.
- Ensure only your AC unit runs on its dedicated breaker for optimal safety.
Upgrade Outdated Wiring
- Older homes, especially those built before the 1980s, may not support the electrical loads of modern HVAC systems.
- Consult a licensed electrician to upgrade wiring and install GFCI protection or surge suppressors for added security.
Address Storm And Power Surge Risks
- Storms and power surges can blow fuses or damage sensitive electrical parts.
- Install whole-home surge protection to reduce risks from lightning or utility grid fluctuations.
Expert Advice: Selecting Replacement Fuses For Air Conditioner Circuit Boards
Fuses are not universal—using the correct type and size is crucial for efficient operation and safety.
How To Identify The Correct Fuse
- Refer to your air conditioner’s manual or the labeling on the circuit board for fuse ratings.
- Typical residential AC units use 3A–10A blade fuses, but always double-check before replacing.
Where To Buy Quality Replacement Fuses
- HVAC supply stores, reputable hardware chains, and online retailers offer compatible fuses.
- Consider buying a set for future emergencies.
Never Substitute With Improper Fuses
- Using a fuse with a higher amp rating may seem like a solution but can cause severe damage or fire.
- Only use components that exactly match the system specifications.
Always prioritize OEM or manufacturer-recommended fuses for reliability.
Frequently Asked Questions About AC Fuse Blowouts
How Often Should I Replace The AC Circuit Board Fuse?
Fuses are not routine maintenance items—if you need frequent replacements, an underlying problem must be addressed immediately.
Call 888-906-9139 for Free Local HVAC Quotes – No Obligation, Just Savings!
Can I Replace An AC Fuse Myself?
You can replace a blown fuse if you know the exact type and have fully shut off power. However, repeated fuse blows indicate a problem best handled by a professional.
Are Reoccurring Fuse Problems Dangerous?
Yes. Persistent electrical faults can lead to fires, serious component failure, or even personal injury. Do not ignore ongoing electrical issues in your air conditioner.
What Should I Do If A New Fuse Blows Immediately?
Turn everything off and call a certified HVAC technician promptly. Immediate fuse failure usually means a direct short or component malfunction.
How Can I Avoid AC Blown Fuses In The Future?
- Stay on top of filter changes and annual maintenance.
- Respect system amperage limits and do not overload circuits.
- Address any abnormal system noises, smells, or performance drops quickly.
Summary Table: Quick Action Guide For Blown AC Circuit Board Fuses
| Step | Action | Expert Tip |
|---|---|---|
| 1 | Turn off power before inspecting fuse | Use a voltage tester to confirm power is off |
| 2 | Remove and check the type/amp rating of fuse | Photograph the fuse/board for identification |
| 3 | Inspect for burnt or damaged components | Look for melted wires or unusual smells |
| 4 | Replace fuse only with exact match | Keep spare fuses handy for emergencies |
| 5 | If fuse blows again, call an HVAC professional | Ongoing issues mean deeper electrical faults |
Properly addressing fuse-related issues in your air conditioning system protects your investment, avoids downtime, and ensures family safety. Do not hesitate to consult qualified experts for lasting solutions and peace of mind.
