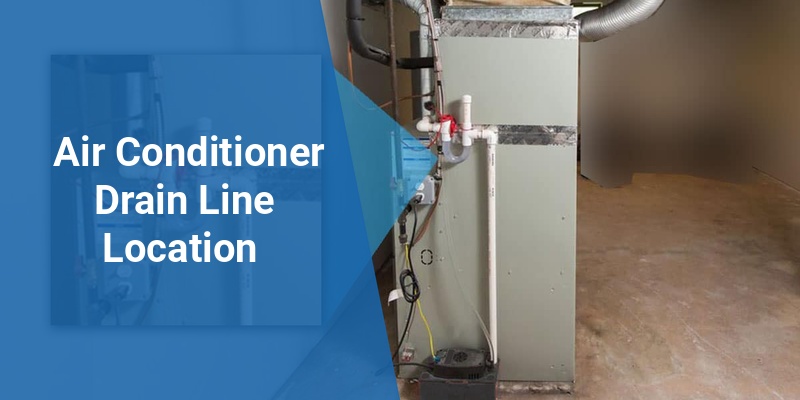

Air Conditioner Drain Line Location: How To Find, Clean, And Maintain Your AC Condensate Drain Line In US Homes

Knowing the air conditioner drain line location is key for preventing leaks, water damage, and mold in your home. The drain line safely removes moisture collected by your AC. This guide explains where to find your AC drain line, how it works, the best cleaning practices, and maintenance tips for American homeowners. Explore each section to ensure your system remains in top condition and your home is safe from hidden moisture problems.

What Is An AC Drain Line And Why Does It Matter?

The AC drain line is a PVC or flexible tube designed to carry condensation away from your cooling system. It helps excess moisture from dehumidification exit your home safely. A properly working drain line prevents pooling water, which could cause mold, mildew, or moisture damage.

A clogged or misplaced drain line can lead to leaks near your AC, musty odors, increased humidity, and the risk of costly repairs. Knowing how to locate and maintain it is crucial for system efficiency and home safety.

Where Is The Air Conditioner Drain Line Located In US Homes?

The location of the AC drain line depends on your system: central air, split system, or window unit. Here’s where to check for each:

Central Air Conditioner Drain Line Location

Most US homes with central AC systems have the air handler located:

• In the attic
• In a utility closet
• In the basement or crawlspace

The drain line will typically:

• Connect to the evaporator coil’s drain pan
• Exit the air handler casing on the side or bottom
• Run as a white or gray PVC pipe
• Travel to the outdoors or to a floor drain

Follow the line from the air handler’s condensate pan and locate where it passes through a wall or runs along the floor. The outdoor end is usually near the foundation, sometimes close to the condenser unit.

Split/Package Unit Drain Line Location

For split or package AC systems, the drain line typically runs from the indoor portion to an exterior drain or pipe. The same PVC material and routing apply as with central systems.

Window Air Conditioner Drain Line Location

Window ACs do not have a dedicated drain line. Instead, condensation drips through a small drain hole in the back or bottom of the unit. Ensure this hole remains unclogged for proper drainage.

How To Visually Identify The AC Drain Line

Look for these common characteristics of a residential AC drain line:

• Material: Usually white or gray PVC pipe, 3/4-inch diameter for central air systems.
• Placement: Starts just below the air handler or evaporator coil inside the house.
• Termination: Ends outside, low on an exterior wall, or leads to a basement floor drain.
• Access Points: May include a capped cleanout or T-fitting for maintenance.
• Visible Drips: You may see water dripping from the exterior pipe during AC operation.

DO NOT confuse the condensate drain line with the refrigerant lines or natural gas lines—the condensate pipe is smaller and carries water only.

Common Placement Of AC Drain Lines In American Homes

Home Layout	Air Handler Location	Drain Line Start	Drain Line Termination
Single-story on slab	Utility closet/garage	Side/bottom of indoor unit	Foundation wall outside/driveway edge
Two-story with attic unit	Attic	Above ceiling, next to drip pan	Exterior wall near ground or soffit
Basement or crawlspace	Basement/crawlspace	Low on air handler, above floor pan	Floor drain or pipe leading outside

Signs Of A Blocked Or Improperly Located Drain Line

• Water pooling or staining around indoor AC unit
• Musty, damp odors near vents or in closets
• No visible dripping at outdoor drain pipe during AC use
• System shutdowns (if safety float switch is tripped)
• Mold or mildew beneath or near indoor air handler

If any of these issues appear, immediate attention to the drain line is required.

How To Access The AC Drain Line For Cleaning

Follow these steps to locate and access your drain line for cleaning:

1. Turn off AC power at the thermostat and breaker box.
2. Open air handler or evaporator coil access panel.
3. Locate the drain pan (under the coil).
4. Find the attached PVC drain pipe—trace it to its exit point.
5. Look for a capped T-fitting or access point for cleaning.

An unclogged drain line is vital for long-term system health and water damage prevention.

Maintenance Tips To Prevent Drain Line Problems

• Flush the line with a cup of white vinegar every 3 months.
• Use a wet/dry vacuum on the outside drain line to remove blockages.
• Check for algae growth or debris at access points and drain pan.
• Keep the outdoor drain area free of mulch, soil, or plants.
• Install a float switch to automatically shut down the AC if the pan fills.
• Have your HVAC tech check the line during annual system maintenance.

Regular care keeps your AC efficient and protects your property.

How Does The AC Condensate Drain Line Work?

Here’s what happens when your AC runs:

1. The evaporator coil gets cold, causing air moisture to condense on it.
2. Condensation drips into the drain pan below the coil.
3. Water travels via gravity through the drain line to reach a safe disposal point.
4. Clean water exits outside or to a home drain, away from living spaces.

Any clogs interrupt this process and lead to overflow issues.

What Size Is A Typical AC Drain Line?

The standard size for most residential systems is 3/4-inch inner diameter PVC. Larger systems or commercial units may require 1-inch lines for higher capacity. Always repair or replace with the correct size for your system.

Solutions For Clogged And Hard-To-Reach Drain Lines

For persistent or inaccessible clogs:

• Insert a long flexible brush or drain snake at the indoor access port.
• Use compressed air to push through tough blockages.
• Pour a mild bleach solution (diluted) monthly to help suppress mold/algae.
• Hire a licensed HVAC professional if the clog cannot be cleared easily.

Avoid harsh chemicals that can damage pipes or equipment.

Best Practices To Avoid AC Drain Line Leaks

• Securely glue or fit all joints and turns in the pipe.
• Ensure the line maintains a downward slope for drainage.
• Prevent kinks or sharp bends in flexible tubing.
• Seal wall penetrations to block pests and humid air intrusion.

Quality installation is the first defense against future moisture problems.

Common Questions About Air Conditioner Drain Line Location

• Can the AC drain line freeze? In very cold climates, the outdoor end can freeze if not properly insulated.
• Can a drain line be rerouted? Yes, but it should always maintain correct slope and routing outside or to an approved drain.
• Is the drain line the same as the overflow line? Some units have both—a main and a secondary (emergency) drain line for added safety.

When To Call An HVAC Expert

• Repeated clogs, leaks, or pan overflows
• Water stains or sheetrock damage
• Strange odors persist despite cleaning
• Unfamiliar with AC components or electrical safety

Prompt professional service protects your investment and indoor air quality.

Key Takeaways For American Homeowners

• Locate your AC drain line by finding the white PVC pipe exiting your air handler or evaporator coil, usually heading outside.
• Clean and inspect the drain line regularly to avoid leaks, mold, and cooling interruptions.
• Annual HVAC maintenance should always include a check of the condensate drain system.
• A well-functioning drain line is critical for comfort, health, and home protection.

Understanding and managing your AC’s drain line location can prevent expensive repairs and keep your cooling system working all summer long.
